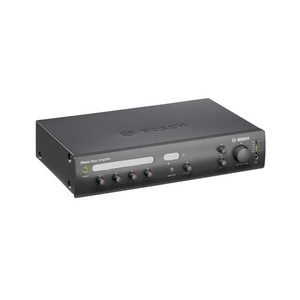

Bosch Power amplifier, 120W

• 1 V line level balanced input
• 100 V input for slave operation on 100 V speaker line
• 120 W power amplifier in a compact housing
• 24 VDC backup power with built in charger
• 70 V, 100 V and 4 ohm outputs
• Temperature-controlled forced front to back ventilation (directly stackable)

Key Specifications

Dimensions (H x W x D) (mm): 100 x 430 x 270 mm
Frequency response (-3 dB) (Hz): 50 – 20000 Hz
Maximum output power (W): 180 W
Operating temperature (°C): -10 – 45 °C
Weight (kg): 10.50 kg
